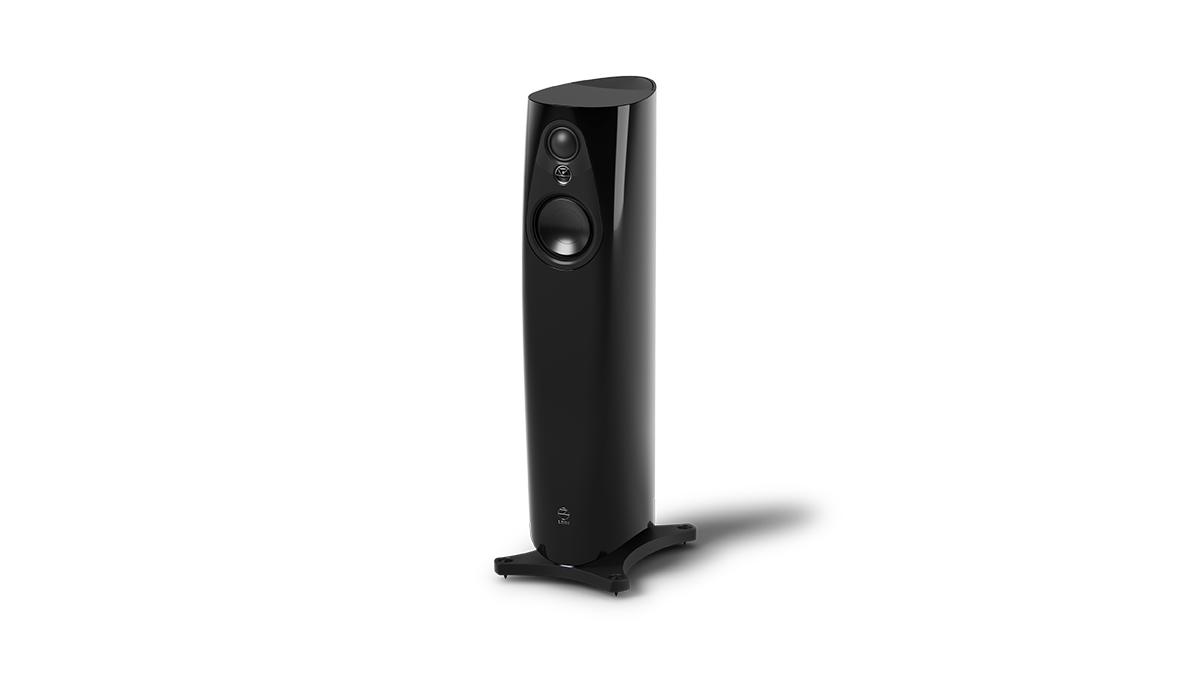

This is the Linn 343: the first loudspeaker designed around Linn’s revolutionary Pistonik drive unit technology from the outset. By bringing Linn’s proprietary technologies together, it creates an extraordinary illusion of reality, delivering reference-level performance in a form that is compact, elegant and designed for any home.
The 343 is more than a loudspeaker that sounds big for its size. Technically sophisticated, visually calm and emotionally immediate, it combines remarkable musical presence with a design that never imposes itself on your living space.
At the heart of the Linn 343 Exakt Integrated is a down-firing 220 mm Pistonik bass driver, powered by Linn’s Power DAC architecture. Working alongside a 190 mm Pistonik upper bass driver, it delivers bass with exceptional scale, texture and composure.
A 19 mm thin-ply woven carbon dome tweeter and a 64 mm thin-ply woven carbon dome midrange driver complete the four-way design, helping reproduce music with clarity, precision and natural expression.
The 343 Exakt Integrated combines Linn’s Exakt digital crossover, Organik DACs, Adaptive Bias Control amplification and Utopik power supply in one fully integrated active loudspeaker system.
Exakt technology provides precise digital crossover processing, while Space Optimisation+ allows the system to account for the listening environment. Together, Linn’s technologies work to preserve the integrity of the musical signal and deliver an immersive, coherent performance.
The electronics module is mechanically isolated from the cabinet using a three-point spring system and cooled entirely passively, ensuring silent operation without distracting fan noise.
The all-new composite cabinet is designed to support wide sound dispersion and rock-solid imaging. Its flowing form combines acoustic purpose with understated elegance, allowing the 343 to integrate naturally into your home while delivering an expansive and precise listening experience.
Type: 4-way floorstanding active loudspeaker
Crossover: Exakt Digital
Bass system: Power DAC and Pistonik motor system
Amplification: Class AB with Adaptive Bias Control
DACs: Organik
Power supply: Utopik
Room optimisation: Space Optimisation+
Tweeter: 19 mm thin-ply woven carbon dome
Midrange: 64 mm thin-ply woven carbon dome
Upper bass: 190 mm aluminium diaphragm with Pistonik
Lower bass: Down-firing 220 mm aluminium diaphragm with Pistonik
Connections: 2 × Exakt Link
The Linn 343 Exakt Integrated brings together Pistonik technology, advanced digital processing and sophisticated amplification in one complete loudspeaker system.
At Authentic High End Brussels, we invite you to discover how this compact reference loudspeaker can transform your listening experience.
Contact us to arrange your Linn 343 Exakt Integrated demonstration.
