This is the Linn 343: the first loudspeaker designed around Linn’s revolutionary Pistonik drive unit technology from the outset. Combining proprietary engineering with a compact, sculptural cabinet, it delivers remarkable musical scale, precision and presence without imposing itself on your living space.
The Linn 343 PWAB brings this reference-level performance to a flexible system configuration, combining an actively powered Pistonik bass system with passive upper-frequency reproduction driven by external amplification.
At the heart of the Linn 343 PWAB is a down-firing 220 mm Pistonik bass driver, powered by Linn’s Power DAC architecture and Utopik power supply. Together with the 190 mm Pistonik upper bass driver, it delivers bass with remarkable depth, texture and composure.
The Pistonik technology brings precision and control to the frequencies that give music its foundation, weight and presence, helping the loudspeaker maintain its composure across a wide range of musical performances.
A 19 mm thin-ply woven carbon dome tweeter and a 64 mm thin-ply woven carbon dome midrange driver complete the four-way floorstanding design.
The 343 PWAB combines active bass amplification with a three-way analogue passive crossover for the upper bass, midrange and tweeter. The bass system uses Linn’s Power DAC architecture, while the 343 Array is powered by separate amplification.
This configuration offers flexibility for systems built around external amplification, while retaining the advantages of Linn’s Pistonik bass technology.
With an Exaktbox and six amplifier channels, the loudspeaker can also be integrated into an Exakt system. Space Optimisation, used with a Linn DSM, helps tailor performance to the listening room.

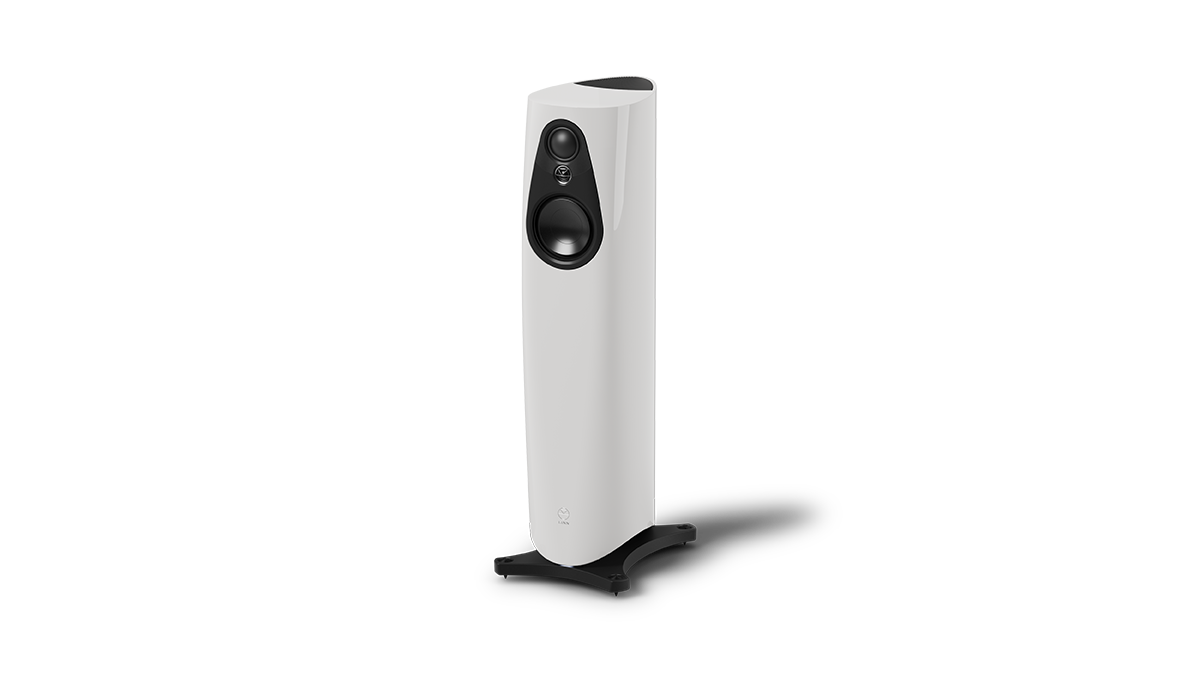

The 343’s all-new composite cabinet supports wide dispersion and rock-solid imaging, combining acoustic precision with a flowing, understated design.
Its electronics module is mechanically isolated using a three-point spring system and passively cooled in silence. Every element is designed to support musical performance while preserving the loudspeaker’s clean, elegant appearance.
Type: 4-way floorstanding loudspeaker with active bass
Crossover: Three-way analogue passive crossover with active bass
Bass system: Power DAC and Pistonik motor system
343 Array: Separate amplification
Exakt compatibility: Yes, with Exaktbox and six amplifier channels
Room optimisation: Space Optimisation with a Linn DSM
Tweeter: 19 mm thin-ply woven carbon dome
Midrange: 64 mm thin-ply woven carbon dome
Upper bass: 190 mm aluminium diaphragm with Pistonik
Lower bass: Down-firing 220 mm aluminium diaphragm with Pistonik

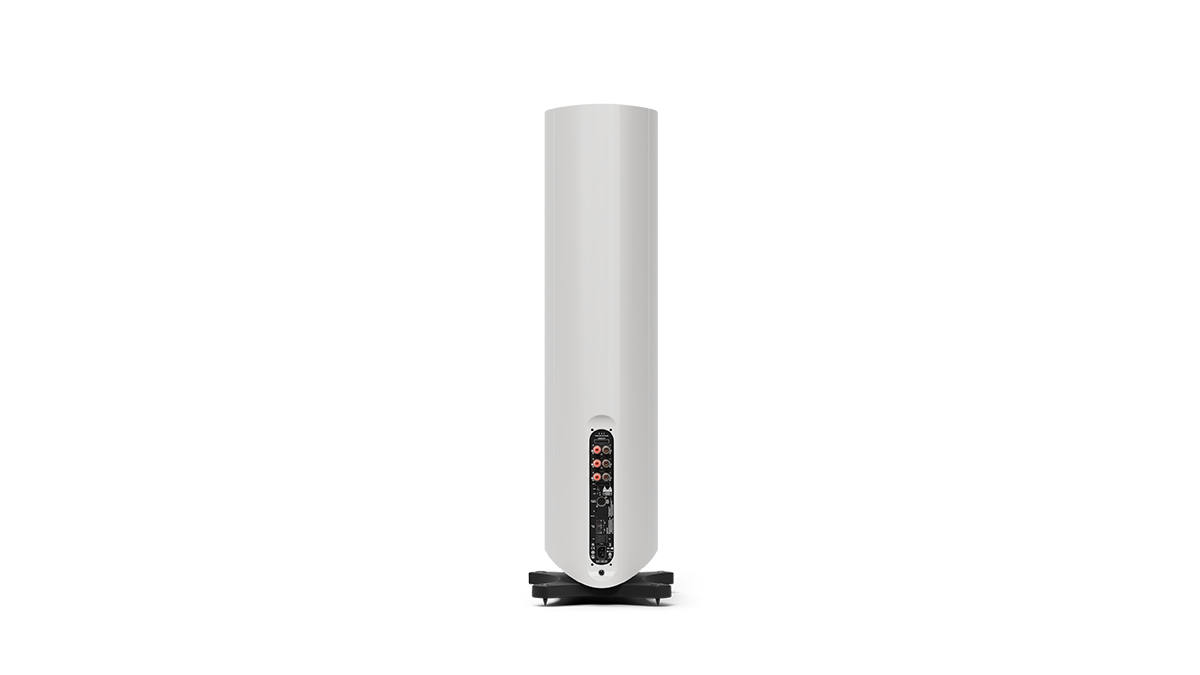

Connections: 1 × Exakt Link for external Exakt operation, 3 pairs of binding posts and 1 × XLR for active bass
The Linn 343 PWAB offers a compelling combination of reference loudspeaker performance, actively powered Pistonik bass and flexible amplification options.
At Authentic High End Brussels, we can help you explore how the 343 PWAB fits into your existing or planned high-end audio system.
Contact us to arrange a demonstration and discover the Linn 343 PWAB for yourself.
